Functional Test Module FX Series
Product Overview
Performs a wide range of functional tests including short/open, I/O, and multimeter measurements. By combining modules, functional testing tailored to customer requirements can be achieved.
Key Features
Flexible System Configuration
Multiple dedicated modules can be combined to build optimal test systems tailored to application and test requirements. System setup and configuration can be performed easily using “FX‑Builder.”
Standardized Module Size
All dedicated modules are standardized to a 5‑inch bay size, offering excellent expandability and compatibility for future system changes and feature additions.
USB Connectivity
A single USB cable connects the system to a PC, simplifying wiring and enabling smooth installation and setup.

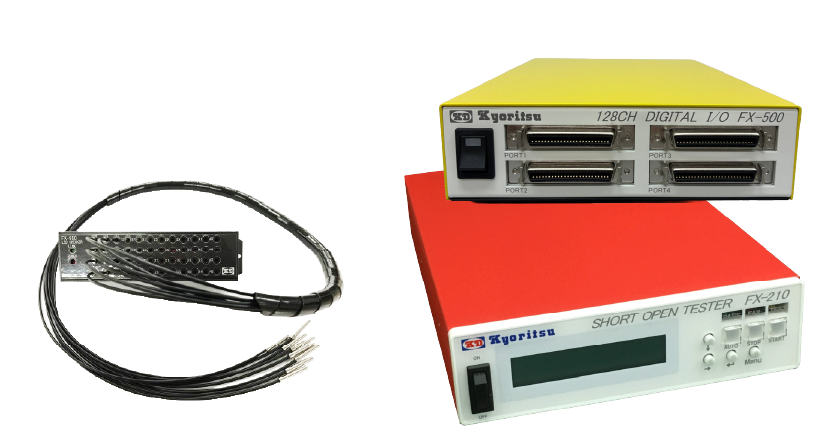

Functional Test Module Lineup
| Model | Function | Features |
|---|---|---|
| FX-210 | Short/Open Checker | Ultra‑compact, high‑performance SO tester with condensed functionality |
| FX-500 | 128CH Digital I/O Module | Proprietary isolated digital I/O enabling efficient testing and production |
| FX-610 | 32CH Mini Relay Unit | Standalone multiplexer for multi‑point measurement and control |
| FX-620 | 48CH Mini Relay Unit | High‑reliability relay module supporting micro‑current control and switching |
| FX-950 | Multi-Point LED Color Test Module | High‑precision module for instant LED chromaticity and brightness evaluation |
