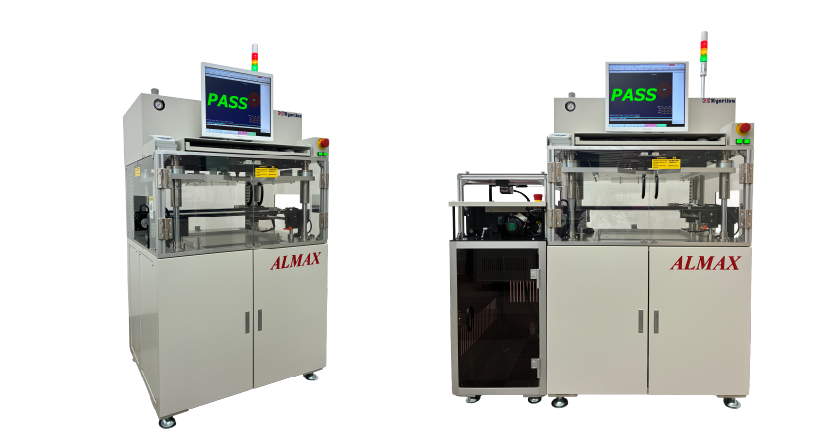

In-Line Automated PCB Test System ALMAX
Product Overview
A fully automated in-line tester designed to achieve high‑precision probing. The measurement section can be configured with in‑circuit testers or various functional test equipment according to customer requirements, enabling high‑speed PCB test.
Key Features
Fully Automated Press Unit
Equipped with a PCB conveyor belt system that automates the entire process from board loading to unloading. Provides stable transport, reduces operator workload, and shortens cycle time.
Simplified Control
Direct mechanism control from the tester PC eliminates the need for PLCs, simplifying system configuration while reducing costs and improving maintainability.
High‑Reliability Press Mechanism
A four‑axis structure minimizes uneven load distribution, achieving uniform and stable pressure and reducing probe‑pin contact failures.
Product Specifications
ALMAX‑2000 Main Specifications
Basic Specifications
| Item | Standard |
|---|---|
| Conveyor Direction | Right to Left or Left to Right (selectable at shipment) |
| Board Positioning Reference | Front‑side reference (rear‑side optional) |
| Board Conveyor Area | PCB outline + 3mm |
| Conveyor Height | 900mm ± 20mm |
| Cycle Time | 10 seconds + measurement time |
| Power Supply Voltage | AC100V |
| Voltage Variation Tolerance | ±10% |
| Power Frequency | 50Hz / 60Hz |
| Air Pressure | 5 Kgf/cm² (approx. 100 L/min consumption) |
| Operating Temperature | 5°C to 35°C |
| Operating Humidity | 30% to 80% |
| Floor Levelness | ±10mm or less |
| Paint Color | Munsell 5Y8/1 |
Measurement Section Specifications
| Item | Standard |
|---|---|
| Tester Model | Focus‑2000 / Focus‑2220 MPX |
| Board Capacity | Standard: 2 boards (128 pins per board) |
| Fixture Cable | 34‑core manual connection |
| Fixture Type | Top‑press type |
| Transport Method | Timing‑belt system |
| Conveyor Rail Width Adjustment | Manual |
| Equipment Dimensions | 700(W) × 850(L) × 1600(H) mm |
| Equipment Weight | 300Kg〜 |
Target PCB Specifications
| Item | Classification |
|---|---|
| Maximum Board Size | 250mm to 330mm (square) |
| Minimum Board Size | 50mm × 50mm |
| Board Thickness | 0.8mm to 1.6mm |
| Board Shape | Rectangular (long side in conveyor direction) |
| Maximum Board Warpage | 2mm |
| Board Weight | 1.2Kg or less |
| Top‑side Component Height | 70mm |
| Bottom‑side Component Height | 20mm |
| Component Restricted Area | PCB outline + 3mm |
| Positioning Method | Guide‑pin method (two or more fixed pins) |
| Guide Hole Position | 5mm or more from board edge, φ2–φ4mm, precision required |
